HFHX 3 Phase 72 volt 60 amp High Frequency Battery Charger (suitable for 430-720ah batteries)

£570.00 + VAT

Model No. HFHX7260-T

Suitable for use with all brands and makes of WET/Flooded Forklift Batteries
High Frequency Output – 72 volts 60 amps (60 amps DC High Frequency is approximately equivalent to a 100 amps DC conventional charger)
Input – 3ph (240vac) 9,5a input current
Suitable for use with batteries of a capacity of 430Ah – 720Ah* (8hr-15hrs)

* Battery capacity range is given as a guide and is based on a battery in good condition. This charger will fully charge batteries of a larger capacity if put on charge before being fully discharged.

Categories: 72v Forklift Battery Chargers, HFHX, High Frequency Forklift Battery Chargers, NEOS

Description

By choosing this High Frequency type battery charger you will be benefiting from the following advantages when compared to a Standard battery charger

Far lower current demand from your mains power supply – Reducing the need for large power sockets, large power supply breaker switches and heavy wiring
Small compact and lightweight
Highly efficient “Constant Current” charge curve
Wall mounted, space saving and less susceptible to damage

Installation

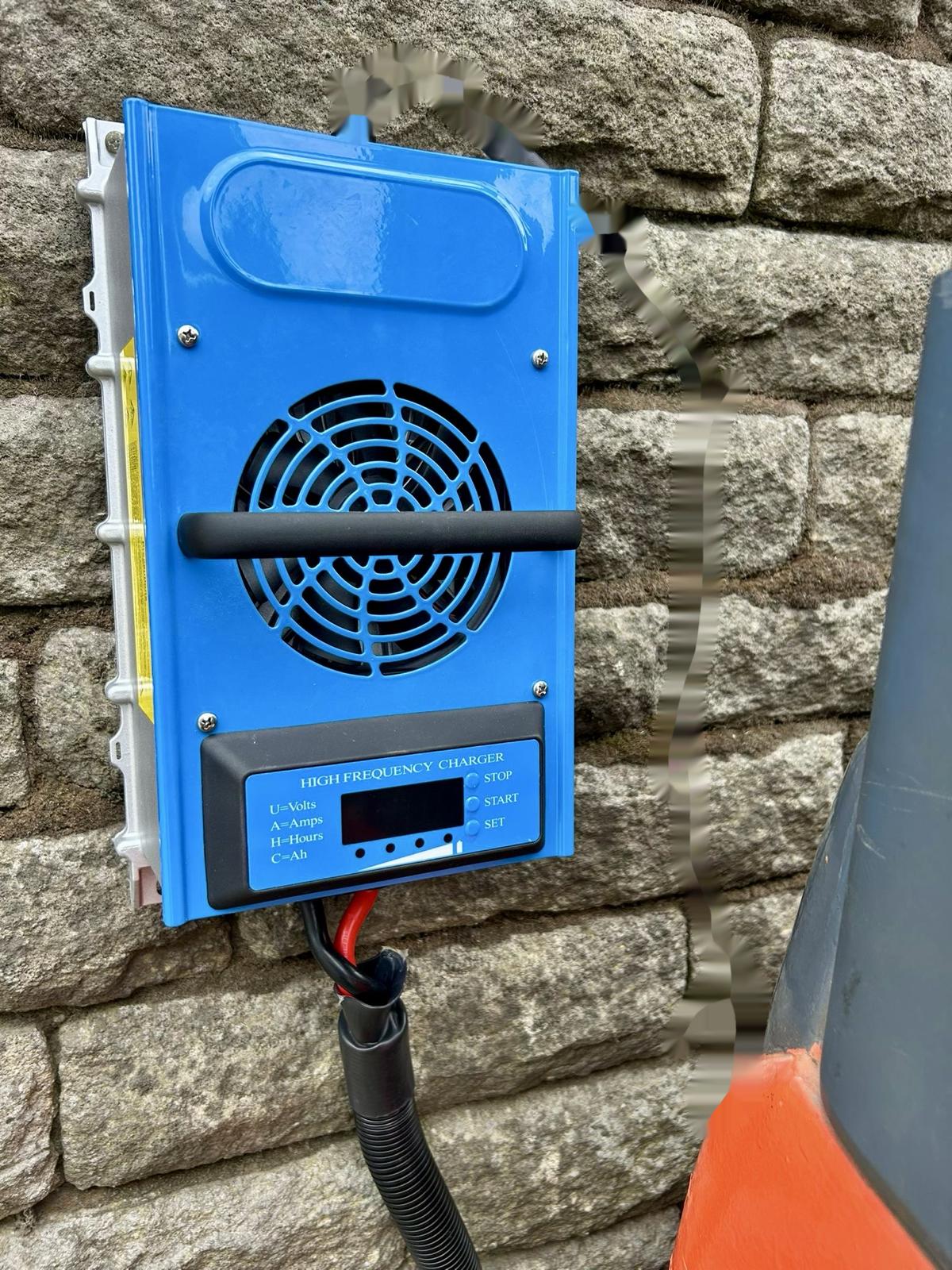

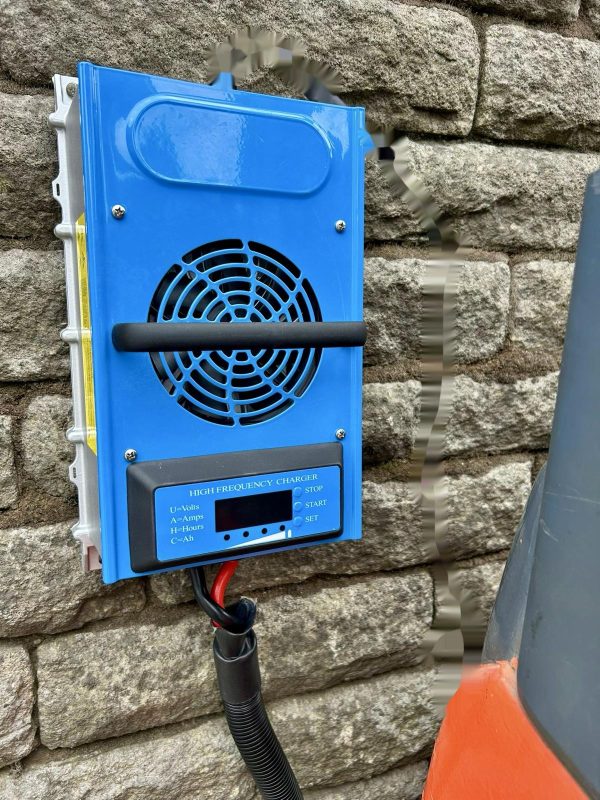

The HFHX Series charger has been designed to be wall mounted

Protection Degree

The HFHX7260-T is rated IP54 (Body)

Dimensions

Dimensions (L x W x H) 419mm x 281.5mm x 143mm

Datasheet

HFHX7260-T DRAWING

User Manual

HFHX7260-T Manual
